Nikon Patent for AF-S DX NIKKOR 35mm f/1.0G Lens

Nikon has filed a patent in Japan. The new patent refers to a Nikon 35mm f/1.0G lens designed for APS-c sensor DX-format DSLR cameras.

The patent application details for the AF-S DX NIKKOR 35mm f/1.0G lens can be seen below. Nikon already has the 35mm f/1.8G AF-S DX Lens for Digital SLR Cameras.

Now f/1 aperture version spotted in a patent application. If this becomes real in near future it will add excitement and fulfill the needs of digital photographers owning Nikon cameras with DX-sized sensors.

Nikon AF-S DX NIKKOR 35mm f/1.0G Lens Patent Details

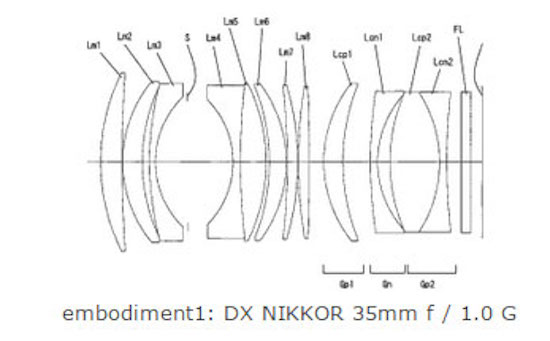

nikon-35mm-f1.0g-dx-lens-patent

Patent Details are below (Translated by google)

Explanation self interpretation of patent literature

  • Patent Publication No. 2015-41003
    • Published 2015.3.2
    • Filing date 2013.8.22
  • Example 1
    • The focal length f = 36.106mm
    • Fno. 1.015
    • Half angle ω = 21.840mm
    • Image height Y = 14.25mm
    • Total length 80.513mm
    • BF 6.803mm
    • Lens construction 10 group 12 sheets
    • Converter magnification β = 0.7 times
    • Master lens (positive) + converter (positive and negative positive)
