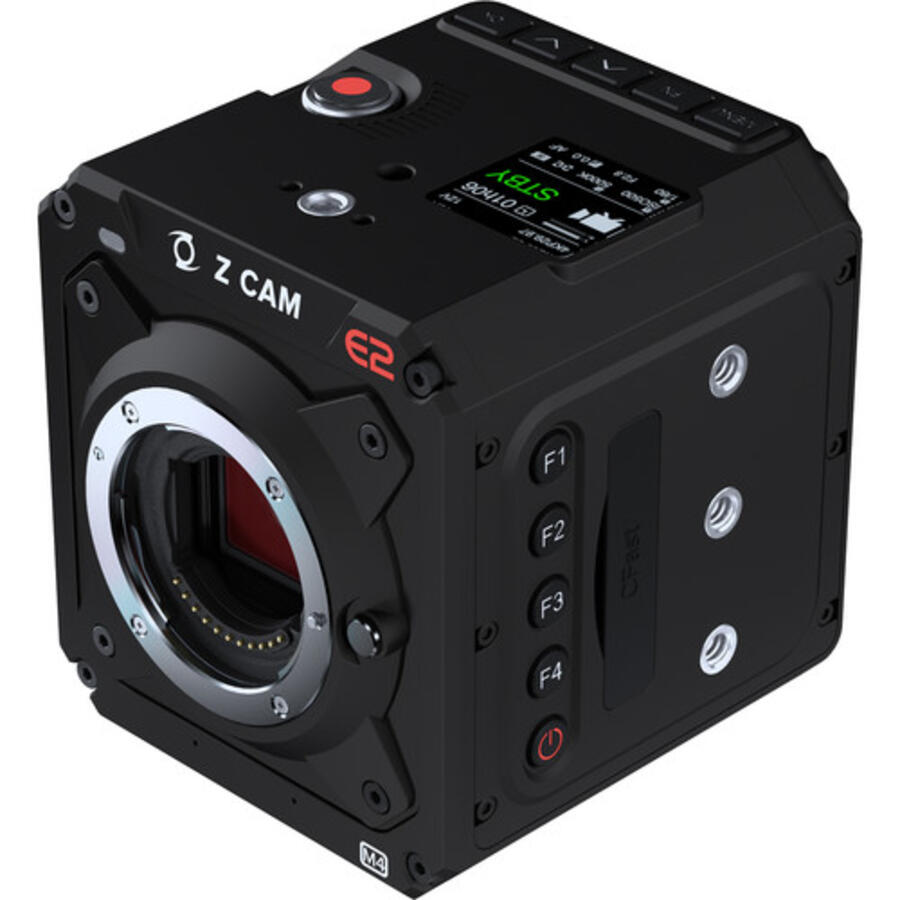

Z CAM E2-M4 Micro Four Thirds 4K Cinema Camera

By on

The Z CAM E2-M4 Professional Micro Four Thirds 4K Cinema Camera is now officially announced. The US price is $1,499 and it is available for pre-order at B&HAdorama. Release date, so shipping of the camera is scheduled to start in June 2020.

The new E2-M4 will sell for $1,499 which is $500 less than the original E2. Shipping should start in the first week of June. The E2-M4 ships without an AC power supply, but other than that it ships with the same accessories as the E2 camera.

Key Features

  • Interchangeable MFT Lens Mount
  • Records DCI/UHD 4K up to 160 fps or 1080p up to 240 fps, to the limit of your recording media’s capacity
  • Triple native ISO 80/160/800
  • 13 stops of dynamic range using ZLog, and 16 stops of dynamic range in WDR mode
  • Built-in multi-frame noise reduction technology to produce clean footage
  • H.265 (10-bit color) internal recording on CFast 2.0 card
  • 10-bit ProRes recording in 422 HQ, 422, 422 LT, and 422 Proxy is supported
  • Video output through HDMI 2.0 is supported (up to DCI 4K at 60 fps, 10-bit color, YUV 422)
  • Full metal housing for efficient heat dissipation
  • ProRes RAW & 12-Bit Color Support
  • 4/3″ WDR CMOS Sensor/Flagship Housing
  • 4K @160fps*, 10-bit color
  • 13~15 stops dynamic range (16 stops with WDR enabled)
  • ZRAW (partial debayer)
  • Gigabit Ethernet for data, control & live streaming


From B&H:

The Z CAM E2-M4 Professional 4K Cinema Camera features an interchangeable Micro Four Thirds lens mount, a Flagship Series housing, and like all Z CAM E2s with the latest update, the ability to record ProRes RAW using select Atomos recorder/monitors. This compact camera records DCI and UHD 4K at up to 160 fps, as well as HD up to 240 fps, and records to a CFast 2.0 card (not included). A future update will enable the E2-M4 to will support RTMP, RTPS, and SRT live streaming directly from the camera without requiring a computer. The camera features a 4/3″ sensor with 10/12-bit color support and nominal 13 stops of dynamic range with 16 stops when set to WDR. The camera supports recording in ProRes 422 in 10-bit, as well as H.265 and H.264 codecs for efficient compressing of your image.

Interfaces and Expandability

  • USB Type-C port for live view and control via iOS device with Z Camera app installed
  • The USB Type-C port can also be used for external SSD recording
  • Ethernet port for live view, control, and file transfer to browser or computer running Z CAM software
  • HTTP API and SDK are also available
  • COM (RS232) port supports UART protocol
  • LANC port for remote control including power on/off
