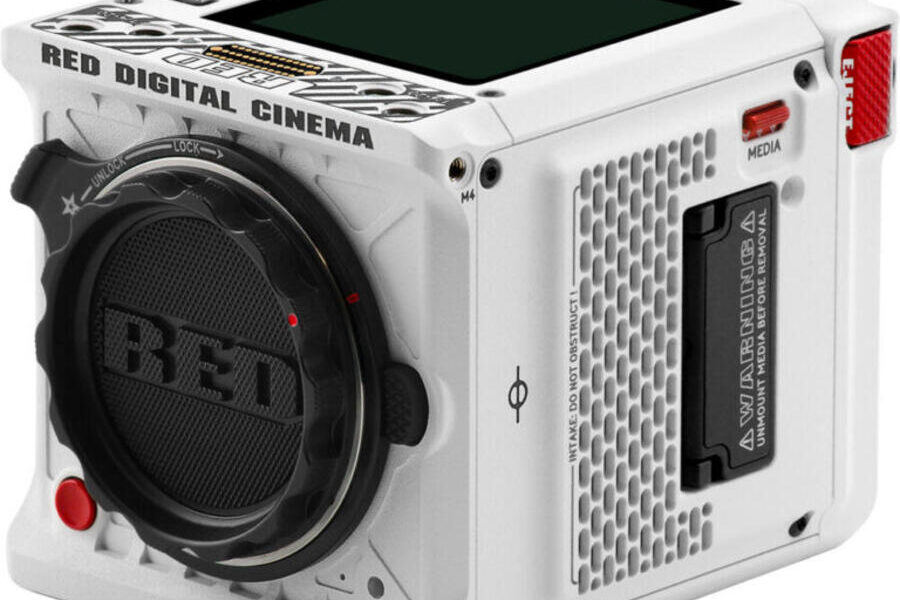

RED DIGITAL CINEMA KOMODO-X ST 6K Digital Cinema camera was just officially announced. With built-in Wi-Fi and a USB-C connector, the KOMODO-X provides a powerful platform for smooth professional capture, multicamera setups, and IP-based workflows, including live streaming.
Retaining the size of the original KOMODO 6K S35 global shutter sensor, RED has redesigned an entirely new sensor for the KOMODO-X to feature even more detail in the shadows, enhance color depth, and double supported frame rates to 6K80 and 4K120 to encourage even more creative cinematography.
The RED Komodo-X ST 6K digital cinema camera is available to order now for $9,995. The limited-edition camera will begin shipping by the end of May at B&H/ Adorama.
.
RED DIGITAL CINEMA Komodo X Specifications
| Lens Mount | Canon RF |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution | Effective: 19.9 Megapixel (6144 x 3240) |
| Image Sensor | 27.03 x 14.26 mm (Super35) CMOS |
| Image Stabilization | None |
| Built-In ND Filter | None |
| Capture Type | Stills & Video |
| Shutter Type | Electronic Global Shutter |
| Advertised Dynamic Range | 16.5 Stops |
| Internal Recording Modes | ProRes 4444XQ 4:4:4 4096 x 2160 up to 60.00 fps ProRes 4444 4:4:4 4096 x 2160 up to 80 fps ProRes 422/ProRes 422 HQ/ProRes 422LT 4096 x 2160 up to 120 fps REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ 6144 x 3240 up to 80 fps [560 Mb/s] 5120 x 2700 up to 96 fps [560 Mb/s] 4096 x 2160 up to 120 fps [560 Mb/s] 2048 x 1080 up to 240 fps [560 Mb/s] |
| External Recording Modes | None |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 24-Bit 48 kHz |
| IP Streaming | None |
| Aspect Ratio | 16:9 |
| Media/Memory Card Slot | Single Slot: CFexpress Type B (CFexpress 2.0) |
| Video I/O | 1 x BNC (12G-SDI) Output |
| Audio I/O | 1 x LEMO 5-Pin Line Input on Camera Body |
| Power I/O | 1 x LEMO 6-Pin (11 to 17VDC) Input |
| Other I/O | 1 x 9-Pin (Genlock, GPI, Timecode) 1 x USB-C (Camera Interface) Control/Data/Video Input/Output 1 x RED Cable-Free Monitor Connection Output |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control |
| Mobile App Compatible | Yes: Android & iOS App Name: RED Control Functionality: Remote Control *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Size | 2.9″ |
| Resolution | 1440 x 1440 |
| Display Type | Fixed Touchscreen LCD |
| Type | Optional, Not Included |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Manual Focus |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Storage Humidity | 0 to 85% (Non-Condensing) |
| Battery Type | V-Mount |
| Tripod Mounting Thread | 1/4″-20 Female (Bottom) 3/8″-16 Female (Bottom) |
| Netflix Approved | Yes |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | 5.09 x 3.99 x 3.75″ / 129.37 x 101.26 x 95.26 mm |
| Weight | 2.62 lb / 1.19 kg (Body Only) |
