IRIX, known for high mechanical and optical quality, pleasantly presents the 11mm T4.3 – the second full frame lens from it’s new cinematography line. Enjoy the new perspective of super panoramic film shots made with Irix Cine lens!
Irix 11mm T4.3 is the second unique lens from the new Cine line. Its extremely short focal length, rectilinear image projection and the large image circle of 43.3mm (covering the full frame format) make it one of the most outstanding cine lenses on the market. Depending on the diagonal of the sensor, the lens can provide a moderate wide angle of view for classic wide-angle shots or super-panoramic 123 degree viewing angle in a 2.39:1 widescreen format. Irix 11mm T4.3 thanks to its unique parameters, provides perspective not available in film optics, thus releasing creativity in creating dynamic
The same, but different optics
The lens optical system is based on the new optical formula, developed especially for cinematic purpose. It consists of 16 optical elements, which four are made with high refractive index (HR) glass, three other have aspherical surfaces and last two are made with low-dispersion glass (ED). The use of large front lens and other special glass elements provides crisp cinematic shots in a resolution up to 8K while keeping the focus “breathing” effect at the lowest level. The lens offers large maximum T number of 4.3 which can be reduced to T22, thanks to rounded shape of iris blades.
Functional and highly innovative
When designing the lens mechanical system of 11mm T4.3, we used newly developed technical solutions that have been successfully implemented in the Irix Cine 150mm T3.0 lens. The new Multi Start Thread focusing mechanism allows quiet and precise focusing even under adverse weather conditions such as rain, humidity or extreme temperatures. The focusing geared ring rotates 180 degrees and depending on the lens version, has focusing scale with metric or imperial units.
Thanks to the another innovative solution like adaptive ring, the Irix Cine 11mm T4.3 ensures great ergonomics of operation both by hand and with follow focus mechanism. Moreover, despite of the very short optical system layout, geared rings of focus and aperture were placed at the same height as in other Irix Cine lenses – all for better ergonomics and more intuitive use.
The exceptional functionality are a distinctive feature of all Irix products. The same applies to the Irix Cine 11mm T4.3, whose extremely compact design (weights 1,1 kg) has been also equipped with an innovative Magnetic Mount System for accessories. The MMS system allows quick and easy attachment of variety dedicated accessories. The lens hood included in the kit with the lens is the first element of the MMS system. The system will be expanded with further accessories in the future.
Prepared for all weather conditions
The ultra wide field of view of the Irix 11mm T4.3 means that its natural work environment is outdoor. It’s durable magnesium housing and numerous rubber seals guarantee the safety of both the optical system and the camera sensor in an every weather conditions.
Designed to work in accordance with film industry standards

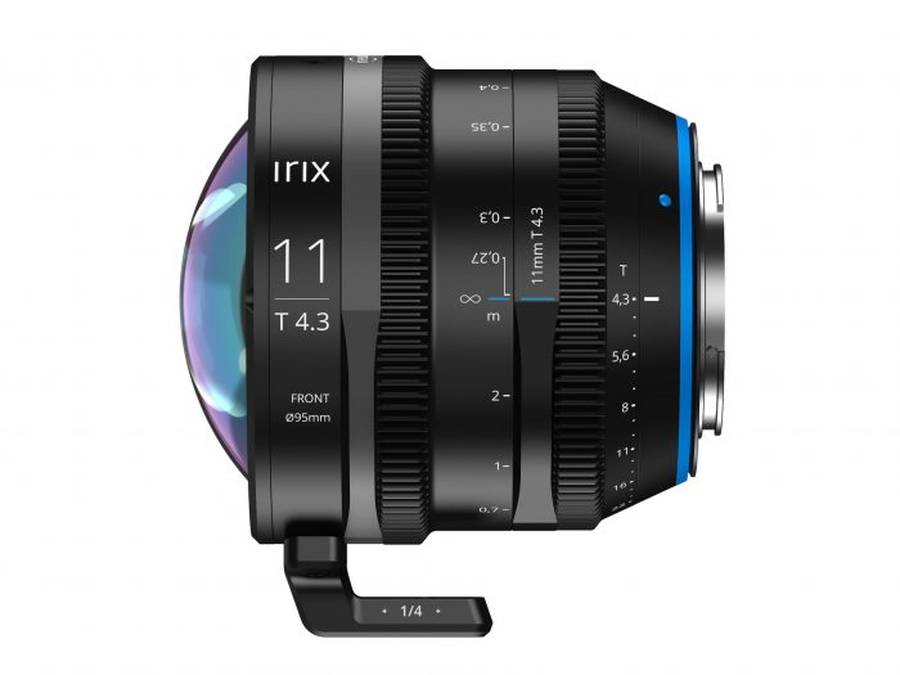

The 11mm T4.3 is another lens of the Irix Cine line that proves that newest technical solutions can perfectly harmonize with well-established film industry standards. The lens has a front flange with a diameter of 95mm and geared rings in the Mod 0.8 standard, which ensures its compatibility with most cine gear accessories. Attention to maintaining the standard also applies to the family of Irix cine lenses whose geared rings are in the same position and have unified rotation angle.
The new line of Irix Cine Lenses is created in close cooperation with professional filmmakers; their ideas and suggestions were an important factor in the design process. The designers earlier experience in the field of photography led us to create new and better solutions for the Irix Cine products.
Available camera mounts
The new Irix Cine 11mm T4.3 will be offered in following lens mounts: Canon EF, Sony E, MFT and Arri PL.
Price and availability
The price and availability of the Irix Cine 11mm T4.3 lens will be announced shortly.
