Canon 120MP APS-H CMOS sensor shooting video

By on

Canon shows off its new 120MP APS-H CMOS sensor. First introduced at CES in January, this is a 120MP APS-H CMOS sensor that can capture “video” at 9.4fps.

The video was published to YouTube today, and it demonstrates this camera’s capability as a security or industrial cam.

According to the video’s description, the sensor features a square pixel arrangement of 2.2µm x 2.2µm, with 122 million effective pixels, and the high-res readout is made possible by multiple signal output channels. See below :

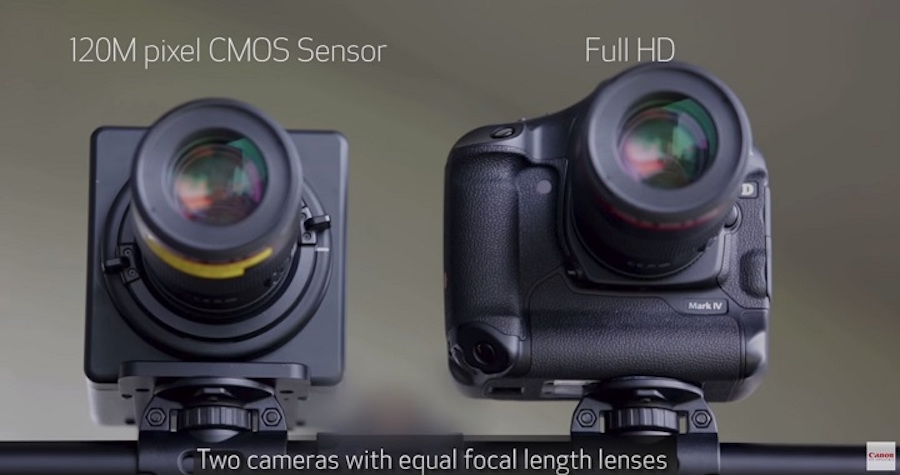

Canon shows off its new 120MP APS-H CMOS sensor

Ultra-high-resolution is made possible by parallel signal processing, which reads signals at high speed from multiple pixels. All pixel progressive reading of 9.4fps is made possible by 28 digital signal output channels. It is available in RGB or with twice the sensitivity, in monochrome.

The 120MXS is an ultra-high resolution CMOS sensor with 13280 x 9184 effective pixels(approx. 60x the resolution of Full HD). It has a size equivalent to APS-H (29.22mm x 20.20mm), and a square pixel arrangement of 2.2µm x 2.2µm with 122 million effective pixels. Ultra-high-resolution is made possible by parallel signal processing, which reads signals at high speed from multiple pixels. All pixel progressive reading of 9.4fps is made possible by 28 digital signal output channels. It is available in RGB or with twice the sensitivity, in monochrome.

See technical specs here.
