Sony DSC-QX10 and DSC-QX100 Manual Images and Specs Leaked

By on

Sony is rumored to announce a new product called lens-camera. Sony DSC-QX10 and DSC-QX100 lens camera announcement expected on September 4th. Sony DSC-QX10 and DSC-QX100 lens camera manual images and specs leaked.

Sony lens camera will be released in two versions. The first lens camera is expected to come with a built-in RX100M2 camera sensor and a Zeiss lens. The first lens camera will feature the same image sensor found in the new RX100 II, as well as the same Zeiss lens.

The second lens camera which is expected to come with smaller sensor and larger zoom, will be powered by a 1/2.3-inch-type 18-megapixel CMOS sensor and a 10x zoom f/3,3-5.9 lens.

Sony DSC-QX10 and DSC-QX100 Manual Images and Specs Leaked

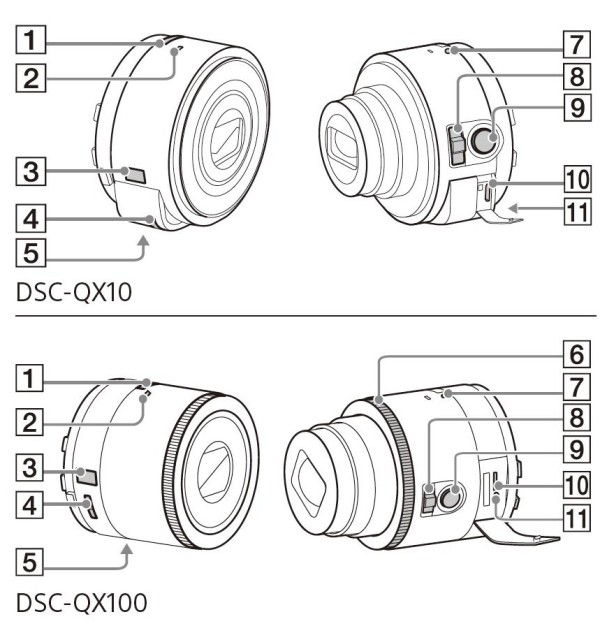

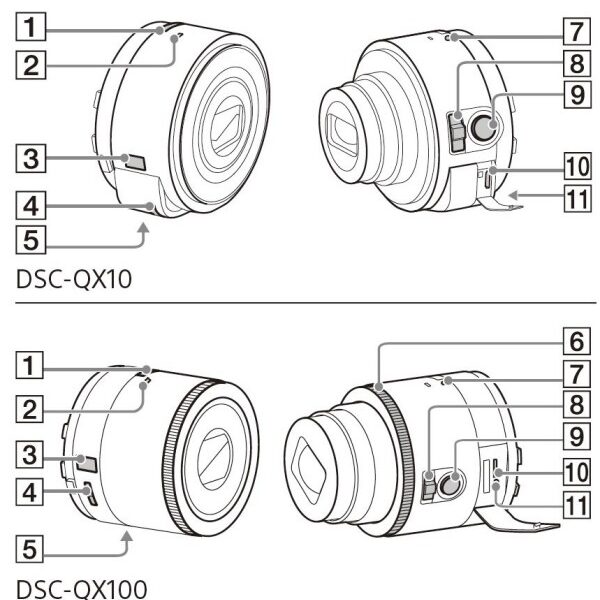

Here are manual images of upcoming Sony QX lens cameras DSC-QX10 and DSC-QX100.


1) Power Button
2) Microphone
3) Display Panel
: Indicates that the card is not inserted
: Indicates the remaining battery charge
4) Hook for belt
5) Tripod
6) Ring Control (DSC-QX100)
7) The power / charge / movie
Green: Power on
Orange: running charging
Red: running video
8) Zoom lever
9) shutter button
10) Multifunctional jack
11) RESET button

Sony DSC-QX10 and DSC-QX100 Lens Camera Specs

  • built-in sensor
  • bionz processor
  • No LCD screen
  • Camera Controls via Wi-Fi or NFC
  • Wi-Fi / NFC connection
  • SD card slot
  • Android and iOS compatibility

Dimensions (standard CIPA):
DSC-QX100: 62,5 mm × 62,5 mm × 55,5 mm (W / H / D)
DSC-QX10: 62,4 mm × 61,8 mm × 33,3 mm (W / H / D)
Weight (standard CIPA) (including battery pack NP-BN, “Memory Stick Micro”):
DSC-QX100: approx. 179 g
DSC-QX10: approx. 105 g
Power Supply: Rechargeable Battery Pack NP-BN, 3,6 In the
Power consumption (during shooting): 1.1 W

Sony DSC-QX10 and DSC-QX100 lens-cameras will be announced on September 4, 2013. Below is the invitation of Sony Press Event.
