Sigma Announces SD Quattro and SD Quattro H SA mount Mirrorless Cameras

By on

Along with the 50-100mm f/1.8 DC HSM Art and 30mm F1.4 DC DN lenses, Sigma today announced that the development of new sd Quattro and sd Quattro H mirrorless cameras with Foveon X3 sensor and Sigma SA mount.

Building on the concept of the SD1 Merrill, both cameras feature a Sigma SA lens mount, making them compatible with all of the Sigma GLOBAL VISION lenses in the Contemporary, Art and Sports lines.

The Sigma Quattro SD mirrorless camera will have two mode Autofocus system and the resolution equal to 39MP Bayer sensor. It will have a compact design similar to dp Quattro cameras with Dust & Splash magnesium alloy body.

The Sigma SD Quattro H camera will come packed with a larger APS-H sensor resolution equal to 51MP Bayer sensor. This camera is designed to take advantage of SGV lenses with great IQ.

The cameras offer a combination of contrast-detect and phase-detect auto focus, plus a focus peaking function for manual focus enthusiasts. The high-resolution 2.36-million-dot electronic viewfinder features near-100% viewfinder coverage and a 1.09 magnification ratio. O-rings and environmental seals around buttons and seams prevent the intrusion of dust and water, making the cameras suitable for use in adverse weather conditions.

The official released date and price information is not available at the moment.

Sigma Announces SD Quattro and SD Quattro H SA mount Mirrorless Cameras

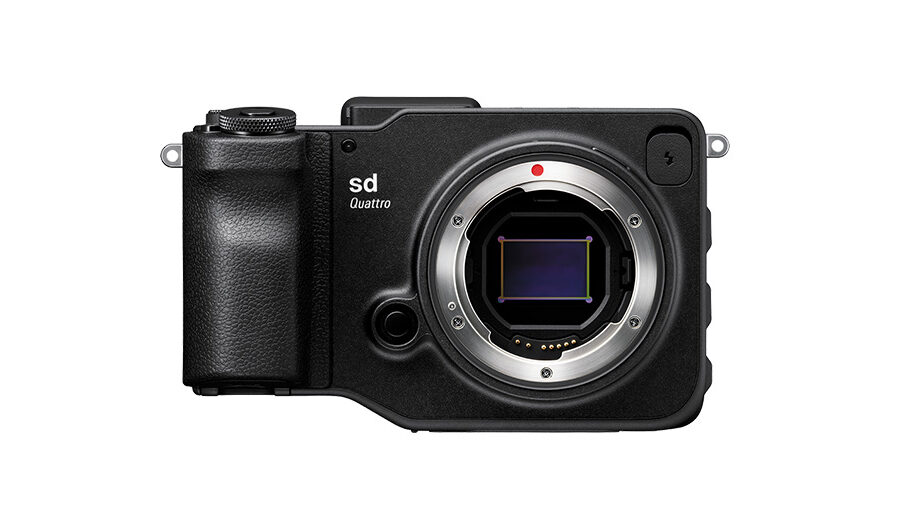

Sigma-sd-mirrorless-camera

In developing any product, SIGMA always has a primary objective in mind: fundamental performance that gives everyone the opportunity to take the perfect photograph. Offering breathtaking resolution, rich gradations and colors, and exceptional realism, the Foveon X3 Quattro direct image sensor is a symbol of this never-ending pursuit of excellence. It delivers image quality so distinctively intense that even the temperature, humidity, and scent of a scene seem to impress themselves upon the viewer.

Presenting the ultimate digital camera experience, the new SIGMA sd Quattro series leverages the image quality of the Foveon X3 Quattro direct image sensor to build a complete system compatible with all SIGMA GLOBAL VISION high-performance interchangeable lenses. The sd Quattro series allows photographers to express themselves with even more freedom and precision.

Believing that the lens is the key to the photograph, SIGMA has created a new camera for the true photographic artist that leverages the power of high-quality lenses. Test its performance with your own hands and eyes—and be amazed.

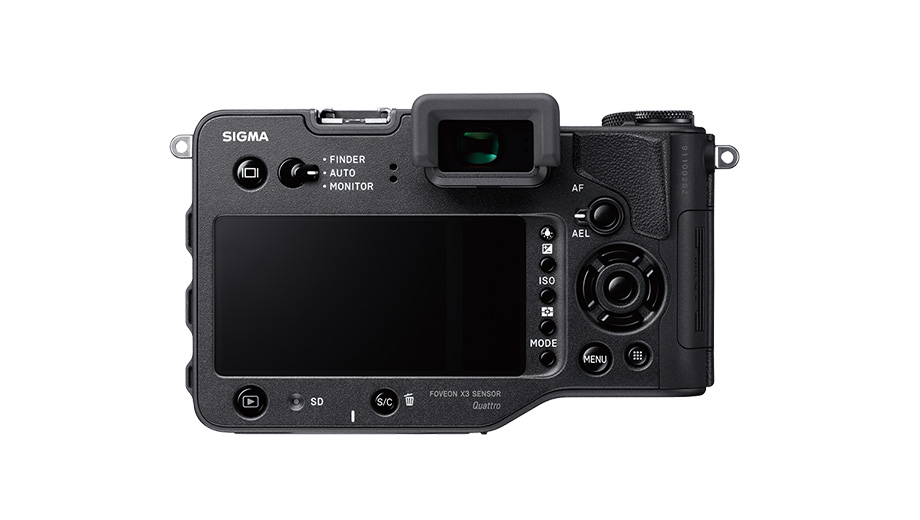

Sigma-sd-mirrorless-camera-back

Technical specifications:

Format
Format Interchangeable-Lens Digital Camera
Compatible Lenses SIGMA SA mount interchangeable lenses
Lens Mount SIGMA SA bayonet mount
Angle of View Equivalent to approx. 1.5 times the focal length of the lens (on 35mm cameras) Equivalent to approx. 1.3 times the focal length of the lens (on 35mm cameras)
Image Sensor
Image Sensor Foveon X3 direct image sensor(CMOS)
Image Sensor Size 23.5×15.5mm (0.9 inch×0.6inch) 26.6×17.9mm (1.0 inch×0.7 inch)
Number of Pixels Effective Pixels: Approx. 29MP
T(Top): 5,424×3,616 / M(Middle): 2,720×1,808 / B(Bottom): 2,720×1,808
Total Pixels: Approx. 33MP
Effective Pixels: Approx. 44.8MP T(Top): 6,200×4,152 / M(Middle): 3,348×2,232 / B(Bottom): 3,348×2,232
Total Pixels: Approx. 45MP
Aspect Ratio 3:2
Recording System
Storage Media SD Card, SDHC Card, SDXC Card, Eye-Fi Card
File Format Lossless compression RAW data (14-bit), JPEG (Exif2.3), RAW+JPEG
JPEG Image Quality FINE, NORMAL, BASIC
Color Mode 11 types ( Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Sunset Red, Forest Green, FOV Classic Blue,FOV Classic Yellow, Monochrome )
File Size

RAW

HIGH T:5,424×3,616 / M:2,712×1,808 / B:2,712×1,808
LOW T:2,704×1,808 / M:2,704×1,808 / B:2,704×1,808

JPEG

[21:9]
S-HI 7,680×3,296
HIGH 5,424×2,328
LOW 2,704×1,160
S-LO 1,920×816
[16:9]
S-HI 7,680×4,320
HIGH 5,424×3,048
LOW 2,704×1,520
S-LO 1,920×1,080
[3:2]
S-HI 7,680×5,120
HIGH 5,424×3,616
LOW 2,704×1,808
S-LO 1,920×1,280
[4:3]
S-HI 6,816×5,120
HIGH 4,816×3,616
LOW 2,400×1,808
S-LO 1,696×1,280
[7:6]
S-HI 6,352×5,120
HIGH 4,480×3,616
LOW 2,224×1,808
S-LO 1,584×1,280
[1:1]
S-HI 5,120×5,120
HIGH 3,616×3,616
LOW 1,808×1,808
S-LO 1,280×1,280

RAW

HIGH T:6192×4128 / M:3096×2064 / B:3096×2064
LOW T:3088×2056 / M:1544×1028 / B:1544×1028

JPEG

[21:9]
S-HI 8,768×3,752
HIGH 6,192×2,648
LOW 3,088×1,320
S-LO 1,920×816
[16:9]
S-HI 8,768×4,928
HIGH 6,192×3,480
LOW 3,088×1,736
S-LO 1,920×1,080
[3:2]
S-HI 8,768×5,840
HIGH 6,192×4,128
LOW 3,088×2,056
S-LO 1,920×1,280
[4:3]
S-HI 7,792×5,840
HIGH 5,504×4,128
LOW 2,736×2,056
S-LO 1,696×1,280
[7:6]
S-HI 7,296×5,840
HIGH 5,152×4,128
LOW 2,560×2,056
S-LO 1,584×1,280
[1:1]
S-HI 5,840×5,840
HIGH 4,128×4,128
LOW 2,048×2,048
S-LO 1,280×1,280
White Balance
Settings 12 types ( Auto, Auto (Lighting Source Priority), Daylight, Shade, Overcast, Incandescent, Fluorescent,Color Temperature, Flash, Custom 1, Custom 2, Custom 3 )
Viewfinder
Type Electronic viewfinder (approx. 2,360,000 pixels color LCD monitor)
Viewfinder Frame Coverage approx. 100%
Viewfinder Magnification approx. 1.09x (-1m-1, 50mm F1.4 at infinity)
Eye point approx. 21mm (–1m-1)
Diopter Adjustment Range approx. -4m-1 to +2m-1
Autofocus
Auto Focus Type Phase difference detection system + Contrast detection system
AF Point 9 points select mode, Free move mode (It is possible to change the size of Focus Frame to Spot, Regular and Large),Face Detection AF Mode
AF Operating Range EV -1~EV 18 (ISO100 F1.4)
Focus Mode Single AF, Continuous AF (with AF motion prediction function), Manual
Focus Lock AEL/AF lock button is pressed or shutter release button is pressed halfway
Exposure Control
Metering Systems Evaluative Metering, Spot Metering, Center-Weighted Average Metering
Metering Range EV 0~EV 17 (50mm F1.4 ISO100)
Exposure Control System (P) Program AE (Program Shift is possible), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual
ISO Sensitivity ISO 100-6400
Exposure Compensation ±5 EV (in 1/3 stop increments)
AE Lock AEL/AF lock button is pressed or shutter release button is pressed halfway
Auto Bracketing Number of shots: 3, or 5 (Appropriate, under, over; 1/3EV steps up to ±3EV for appropriate exposure)
Shutter
Shutter Type Electronically Controlled Focal Plane Shutter
Shutter Speed 1/4000 – 30 sec., Bulb (With Extended Mode : Max. 2 min.)
External Flash Sync. X-Sync(1/180)
Flash
Connectivity Hot shoe (contact X synchronization at 1/180 sec. or less, with dedicated flash linking contact)
Sync Terminal Available
LCD Monitor
Type TFT color LCD monitor
Monitor Size 3.0″
LCD Pixels Approx. 1,620,000 pixels
Coverage 100%
Electronic Level Display Available
Playback
Reviewing Images Single frame display, 9 frames multi display, Zoom, Slide Show
Highlight Display Available
Histogram Available
Menu
LCD Monitor Language English / Japanese / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese / Korean / Russian /Dutch / Polish / Portuguese / Danish / Swedish / Norwegian / Finnish
Interfaces
Interfaces USB (USB3.0, micro B), HDMI (Type C mini-pin HDMI connector), Remote
Power Source
Power Li-ion Battery BP-61, Battery Charger BC-61, AC adapter SAC-7 (optional) [DC connector CN-31, AC cable (supplied)]
Dimensions and Weight
Dimensions 147mm/5.79″(W) × 95.1mm /3.74″(H) × 90.8mm/3.57″(D) 147mm/5.79″(W) × 95.1mm /3.74″(H) × 90.8mm/3.57″(D)
Weight 625g / 22oz. (without battery and card) TBD
Operating Environment
Operating Temperature 0 – +40℃
Price
sd Quattro Body
Accessories
Accessories Li-ion Battery Pack BP-61 / Battery Charger BC-61 / AC Cable of Battery Charger / USB Cable / Strap / Body Cap /Instruction Manual / Limited Warranty / Warranty Sticker
Optional Accessories
Optional Accessories Power Glip PG-41 / AC Adapter SAC-7 / Cable Release Switch CR-31 / Electronic Flash EF-630 / Li-ion Battery BP-61 /Battery Charger BC-61 (AC cable is supplied) / AC adapter SAC-7(optional)[DC connector CN-31, AC cable (supplied)]

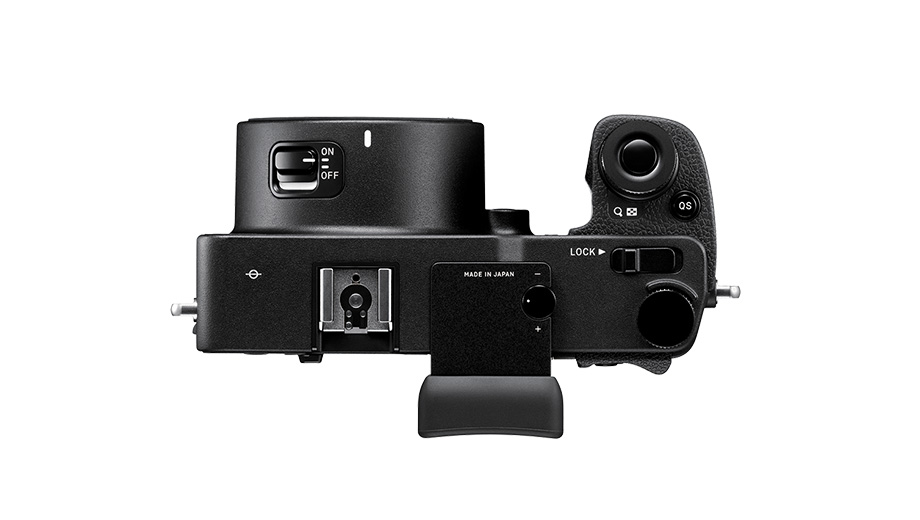

Sigma-sd-mirrorless-camera-top

Additional information on the new Sigma sd Quattro mirrorless cameras is available here.

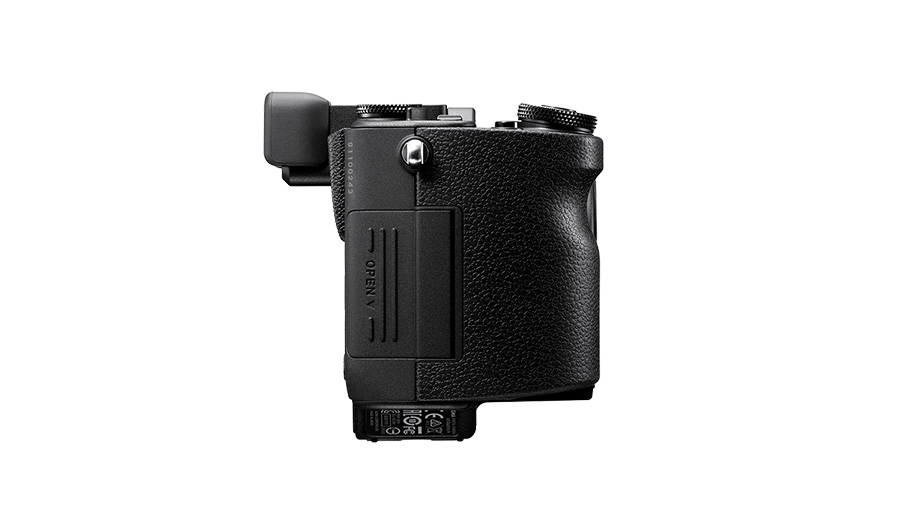

Sigma-sd-mirrorless-camera-side
