Zeiss Otus 28mm f/1.4 Distagon Lens (Otus 1.4/28) Announced

Zeiss has announced the new Otus 28mm f/1.4 wide-angle prime lens designed for full-frame DSLR cameras.

The ZEISS Otus 1.4/28 lens offers unrivalled image quality unseen until now in wide-angle photography, even with a wide-open aperture. Even with a maximum aperture, the corners of the image are completely usable, so there are no limits to composition. In poor light combined with fast-moving objects, the lens also excels due to its high speed of f/1.4.

The ZEISS Otus 1.4/28 ZF.2 for Canon EF and ZEISS Otus 1.4/28 ZE for Nikon F mount will be available worldwide in the second quarter of 2016. The lens shade is included with delivery. The retail sales price is unknown to date.

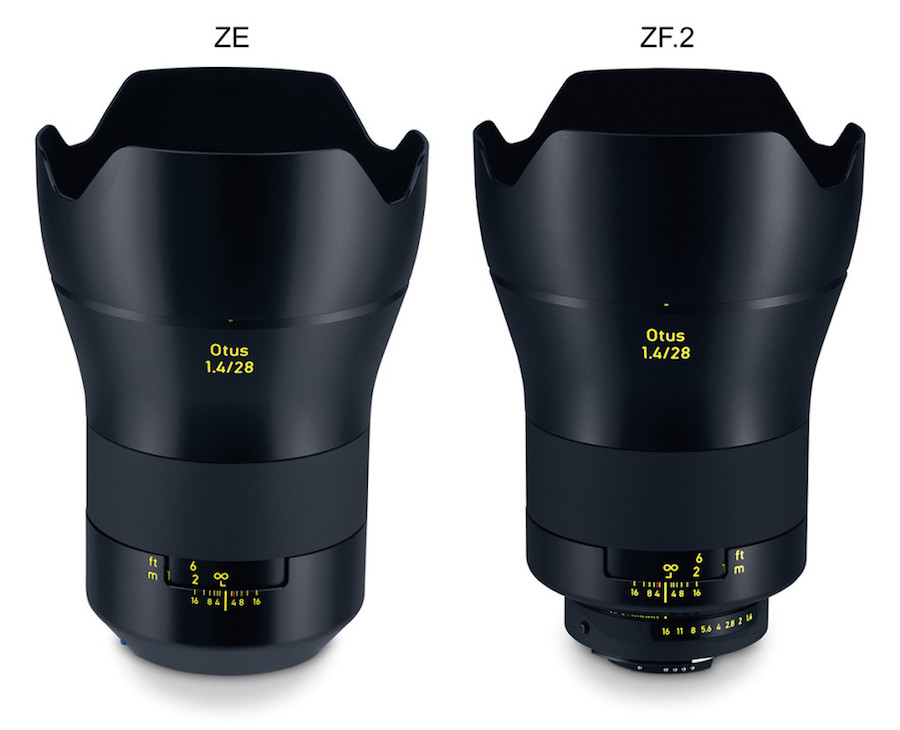

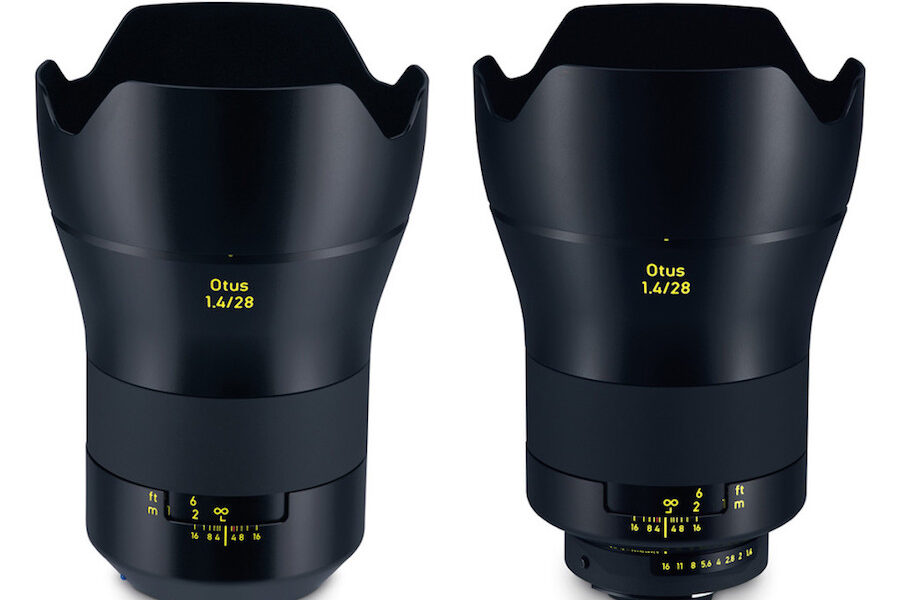

Zeiss Otus 28mm f/1.4 Distagon Lens Officially Announced

zeiss-otus-28mm-f1-4

Zeiss currently has the Otus 1.4/85 and 55mm f/1.4 lenses in the family designed for DSLRs with full-frame image sensors.

The 28mm F1.4 Otus lens from Zeiss sure will have a higher price tag and it will be available only in Canon EF and Nikon F mounts. Currently, the 55mm f/1.4 Otus Distagon T* model has a price tag around $3,525 while the 85mm f/1.4 Otus Apo Planar T* can be bought for about $4,115.

Zeiss says this lens is “The world’s best wide-angle lens.” High-res sample images are available at Flickr.

Technical specifications:

Focal length 28 mm
Aperture range f/1.4 – f/16
Focusing range 0,30 m (11.81”) – ∞
Number of elements/groups 16 / 13
Angular field, diag./horiz./vert. 75° / 65° / 46°
Coverage at close range 225 x 150 mm (8.89 x 5.91″)
Filter thread M95 x 1,00
Dimensions (with caps) ZF.2: 152,0 mm (5.98‘‘)
ZE: 154,0 mm (6.06‘‘)
Weight ZF.2: 1350 g (47.62 oz)
ZE: 1390 g (49.03 oz)
Camera mounts F Mount (ZF.2)
EF Mount (ZE)

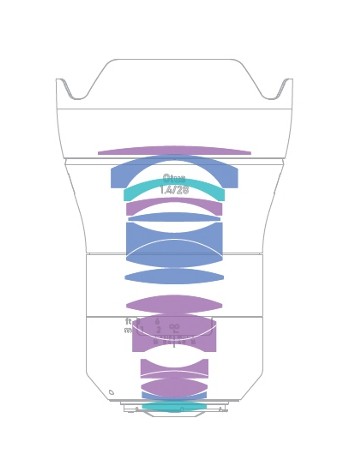

Zeiss Otus 28mm f/1.4 MTF Charts and Lens Design

zeiss-otus-28mm-f1-4-mtf-chart

zeiss-otus-28mm-f1-4-design

The ZEISS Otus family continues to grow

ZEISS Otus 1.4/28: the new focal length in the wide-angle range augments ZEISS’s most powerful family of SLR lenses

OBERKOCHEN/Germany, 14 October 2015

With the new ZEISS Otus 1.4/28, users of shorter focal lengths can now also take advantage of the uncompromising quality of the ZEISS Otus family, whether for landscapes, architectural photography or any other images they take with a wide-angle lens. Where details count, the ZEISS Otus 1.4/28 with ZE or ZF.2 mount for DSLR cameras from Canon1) and Nikon1) is the lens of choice. When used with modern, high-resolution DSLR cameras, it offers unrivalled image quality unseen until now in wide-angle photography, even with a wide-open aperture.

The ZEISS Otus 1.4/28, a moderate wide-angle lens, particularly shows off its strengths in landscape photography. Even with a maximum aperture, the corners of the image are completely usable, so there are no limits to composition. In poor light combined with fast-moving objects, the lens also excels due to its high speed of f/1.4. While other lenses reveal their shortcomings in correction in night photography, especially when lots of open light sources dominate an image, the ZEISS Otus 1.4/28 boasts a stellar performance. Finally, the latest member of the ZEISS Otus family is excellent for taking pictures of image elements in the foreground, as they take on a greater feeling of depth to the scene due to the wide background and the open aperture; here, the lens’s harmonious bokeh ensures a 3D effect.

For professional photographers

Developed to meet the high demands of professional photographers, the ZEISS Otus 1.4/28 has – like the two other focal lengths in the ZEISS Otus family – inner focusing, a dial window and the well-known yellow labeling of the dials for easy legibility, all of which are already known from professional cine lenses (for example ARRI/ZEISS Master Prime).

The ZEISS Otus 1.4/28 also stands out for its mechanical quality: the soft focus operation with the large rotation angle allows for the finest variations when focusing – something that is only possible with a metal construction. In every focusing situation, the user is given freedom to compose – one of the most important creative factors in photography. An artistic tool is literally put in the photographer’s hands. The robust all-metal barrel with its easy-to-grip focus ring is well suited for a photographer’s demanding everyday work; this ensures a long product life. The optical performance of the ZEISS Otus 1.4/28 is outstanding thanks to its high image contrast all the way into the edges of the image – already at an open aperture. Its consistent performance at all distances (minimum working distance of 0.15 m or 5.19”), the highly detailed images it creates without any bothersome artifacts, and the neutral bokeh in the background round out the excellent image quality of the ZEISS Otus 1.4/28. “With these features the ZEISS Otus lenses set themselves apart from the other ZEISS SLR lenses, such as the ZEISS Milvus family, which we recently presented,” said Christophe Casenave, Product Manager with ZEISS Camera Lenses.

Thanks to these characteristics, the ZEISS Otus 1.4/28 offers users who use a modern high-resolution 35-mm DSLR camera a quality that corresponds to the level of the medium format – without having to invest in large and expensive medium-format equipment.

Intricate construction for uncompromising imaging performance

The lens consists of 16 elements in 13 groups. One of the lens elements has an aspheric optical surface and one element is aspheric on both sides. Eight other lens elements are made of special glass. The basis of the optical design is a Distagon. The special glass has anomalous partial dispersion, as is typical for an apochromatic lens. This corrects the longitudinal chromatic aberrations superbly, which therefore lie considerably below the tightly defined boundaries.  Bright-dark transitions in the image, in particular highlights, are depicted almost completely free of color artifacts. The floating elements design (the change of distances between certain lens elements when focusing) allows for unrivalled imaging performance along the entire focusing range, from 0.3 m (11.81”) to infinity.

The ZEISS Otus lens family

When ZEISS introduced the ZEISS Otus 1.4/55 in 2013, creating a new family of high-end SLR lenses, the trade press and users alike were enthusiastic. The ZEISS Otus 1.4/55 has exceeded its promises up to this day. The second member of the family, the ZEISS Otus 1.4/85, which was presented at photokina 2014, continued this success story in the short telephoto range. It enables photographers to express their creativity in a unique way – and that with the unsurpassed high imaging performance for which the lenses in the ZEISS Otus family are known. “The ZEISS Otus 1.4/28 continues the tradition of its lens family. It is the best wide-angle that has ever existed. Now we can offer three outstanding lenses for the widest variety of applications,” added Casenave.

Price and availability

The ZEISS Otus 1.4/28 ZF.2 and ZEISS Otus 1.4/28 ZE will be available worldwide starting in the second quarter of 2016. The lens shade is included with delivery. The retail sales price is unknown to date.

Camera mounts

EF-mount (ZE), F-mount (ZF.2)

1) Nikon is a registered trademark of Nikon Corporation. Canon is a trademark or registered trademark of Canon Inc. and/or other members of the Canon Group.

2) relates to 24x36mm format
