Olympus E-M5II Micro Four Thirds Camera Officially Announced

Olympus officially announced the OM-D E-M5 Mark II mirrorless camera with Micro Four Thirds image sensor.

The Olympus E-M5II boasts a 40MP high resolution shot mode, achieved by shifting the sensor in half-pixel steps and capturing eight images over a period of one second.

The Olympus E-M5II also offers a built-in 2.36 million dot EVF, Wi-Fi and an articulating 3″ 1.04 million dot touchscreen LCD. It’s capable of 10 fps shooting with single AF (5 fps C-AF), as well as 1080/60p video capture with headphone and microphone jacks. Details as follows!

Olympus E-M5II Mirrorless Camera Now Official

olympus-e-m5ii-front

Olympus E-M5II Camera Price and Release Date

The Olympus OM-D E-M5 II will be available in February with a price tag for $1099.99 body-only. All-black and silver body versions will be sold for the same price.

Buy Olympus E-M5II Mirrorless Camera
Olympus E-MII Body-Only $1,099.99 Amazon | Adorama

Olympus E-M5II Camera Specifications

Body type Rangefinder-style mirrorless
Body material Magnesium alloy
Max resolution 4608 x 3456
Image ratio w:h 1:1, 4:3, 3:2, 16:9
Effective pixels 16 megapixels
Sensor photo detectors 17 megapixels
Sensor size Four Thirds (17.3 x 13 mm)
Sensor size notes High resolution mode produces Raw images at 9216 x 6912 or JPEGs at 7296 x 5472.
Sensor type CMOS
Processor TruePic VII
Color space sRGB, AdobeRGB
Color filter array Primary color filter
ISO Auto, 200-25600, expands to 100-25600
White balance presets 7
Custom white balance Yes (4 slots)
Image stabilization Sensor-shift
Image stabilization notes 5-axis
Uncompressed format RAW
JPEG quality levels Superfine, fine, normal, basic
File format
  • JPEG (Exif v2.3)
  • Raw (Olympus ORF format)
  • MPO (3D)
Autofocus
  • Contrast Detect (sensor)
  • Multi-area
  • Center
  • Selective single-point
  • Tracking
  • Single
  • Continuous
  • Face Detection
  • Live View
Autofocus assist lamp Yes
Manual focus Yes
Number of focus points 81
Lens mount Micro Four Thirds
Focal length multiplier 2×
Screen size 3
Screen dots 1,037,000
Touch screen Yes
Screen type TFT-LCD
Live view Yes
Viewfinder type Electronic
Viewfinder coverage 100%
Viewfinder magnification 1.48×
Viewfinder resolution 100
Minimum shutter speed 60 sec
Maximum shutter speed 1/16000 sec
Exposure modes
  • iAuto
  • Program
  • Aperture priority
  • Shutter priority
  • Manual
  • Bulb
  • Time
Scene modes
  • Portrait
  • e-Portrait
  • Landscape
  • Landscape + Portrait
  • Sport
  • Hand-held Starlight
  • Night scene
  • Night + Portrait
  • Children
  • High Key
  • Low Key
  • DIS mode
  • Macro
  • Nature Macro
  • Candle
  • Sunset
  • Documents
  • Panorama
  • Fireworks
  • Beach & Snow
  • Fisheye Conv.
  • Wide Conv.
  • Macro Conv.
  • Panning
  • 3D
Built-in flash No (Compact external flash included)
External flash Yes (via hotshoe)
Flash modes Auto, redeye, fill, off, redeye slow sync, slow sync, 2nd-curtain slow sync, manual
Flash X sync speed 1/250 sec
Drive modes
  • Single
  • Sequential (hi/lo)
  • Self-timer
Continuous drive 10.0 fps
Self-timer Yes (2 or 10 secs, custom)
Metering modes
  • Multi
  • Center-weighted
  • Spot
Exposure compensation ±5 (at 1/3 EV, 1/2 EV, 1 EV steps)
AE Bracketing ±5 (2, 3, 5, 7 frames at 1/3 EV, 2/3 EV, 1 EV steps)
WB Bracketing Yes (+/- 7 stops in each A-B/G-M axis)
Resolutions 1920 x 1080 (60p, 50p, 30p, 25p, 24p), 1280 x 720 (60p, 50p, 30p, 25p, 24p), 640 x 480 (30p)
Format MPEG-4, H.264, Motion JPEG
Videography notes Supports ALL-I and IBP recording modes
Microphone Stereo
Speaker Mono
Storage types SD/SDHC/SDXC
USB USB 2.0 (480 Mbit/sec)
HDMI Yes (micro-HDMI)
Microphone port Yes
Headphone port No
Wireless Built-In
Remote control Yes (wired and via smartphone)
Environmentally sealed Yes
Battery Battery Pack
Battery description BLN-1 lithium-ion battery & charger
Battery Life (CIPA) 310
Weight (inc. batteries) 469 g (1.03 lb / 16.54 oz)
Dimensions 124 x 85 x 45 mm (4.88 x 3.35 x 1.77)
Orientation sensor Yes
Timelapse recording Yes
GPS None

Olympus E-M5II Camera Product Images

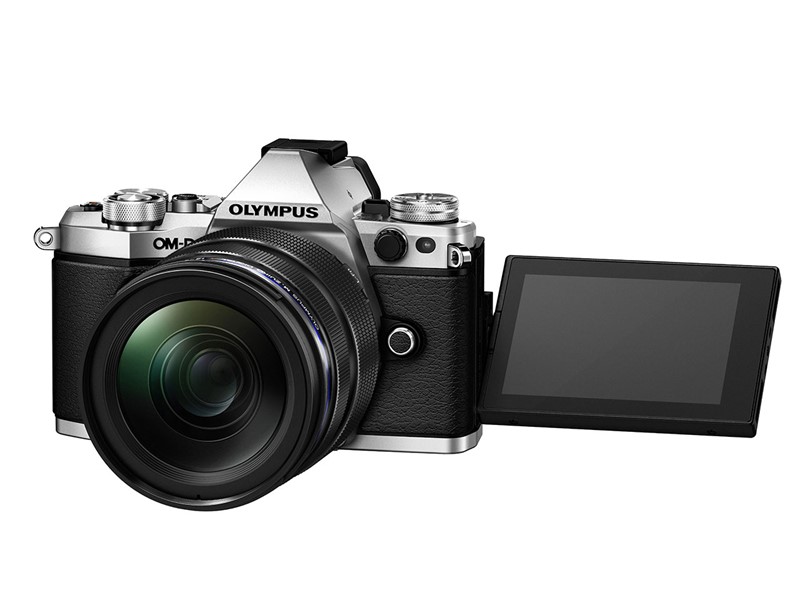

olympus-e-m5ii-lcd

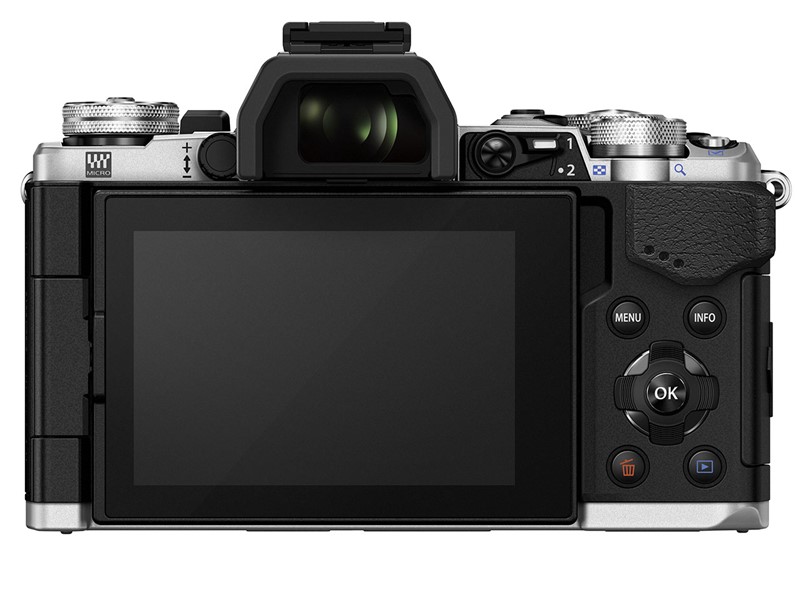

olympus-e-m5ii-back

olympus-e-m5ii-side

olympus-e-m5ii-top

A FOCUS ON STABILITY: OLYMPUS OM-D E-M5 Mark II® CAPTURES STUNNING MOVIES FROM THE PALM OF YOUR HAND

Industry-Leading 5-Axis Image Stabilization, Variable-Angle LCD, Advanced Video Features and 40-Megapixel High-Res Shot in a Compact Interchangeable-Lens Camera

CENTER VALLEY, Pa., February 5, 2015 — Olympus introduces an exceptional high-resolution still and advanced motion picture hybrid with the new OM-D E-M5 Mark II®. This advanced interchangeable-lens camera features a compact dustproof, splashproof body, with a familiar, premium design. Packed with 5-axis image stabilization, a 40-megapixel high-resolution shot mode, sophisticated, stunning HD video, integrated Wi-Fi® and a variable-angle 3-inch touchscreen, the OM-D E-M5 Mark II makes it easy to get the shot you need, every time. The easy-to-use 2.36 million dot, super-large, high-definition electronic viewfinder has a field of view of 100%, and a viewfinder magnification of 1.48x. The camera is equipped with Adaptive Brightness Technology, which automatically adjusts the backlight brightness in accordance with environmental lighting. The new LV Boost II*1 is convenient for shooting stars, and Creative Control provides complete freedom of control over color, tone, focus, and aspect ratio.

Exceptional Performance

The Olympus OM-D E-M5 Mark II pairs a redesigned16-megapixel Live-MOS Micro Four Thirds® sensor with the Olympus TruePic™ VII processor, enabling brilliant image quality in bright and low-light conditions alike. The 1/8000 mechanical shutter allows photographers to shoot using a large aperture for maximum bokeh, even in bright, daylight conditions. Users can capture RAW images at up to 10 fps with S-AF, or 5 fps with C-AF tracking enabled. An Anti-shock mode utilizes electronic first-curtain shutter to reduce shutter shock during sequential shooting, and a new Silent mode enables a full-time 1/16000 second electronic shutter, eliminating the mechanical shutter noise entirely for absolutely silent shooting. The 81-point Fast AF provides an expanded focus area, with unparalleled speed, while Small Target AF allows users to focus on small areas across the entire frame.

World’s Most Sophisticated Image Stabilization

The Olympus OM-D E-M5 Mark II’s in-body 5-axis VCM image stabilization system offers unprecedented performance. The camera’s 16-megapixel sensor shifts horizontally, vertically and on the X (pitch), Y (yaw) and Z (roll) axes in order to provide 5.0 EV steps of compensation performance. The OM-D E-M5 Mark II can capture sharp images at shutter speeds as low as 1/4-second without the use of a tripod. Sensor shift on the X and Y axes can also assist when photographing close-up subjects. Image stabilization extends to the 3-inch, 1.04M-dot rear vari-angle touchscreen and the 2.36M-dot electronic viewfinder (1.48x magnification), providing a full image stabilization preview when the shutter button is pressed halfway.

40-Megpixel High-Resolution Shot

The Olympus OM-D E-M5 Mark II takes high-resolution imaging to a whole new level. In addition to the exceptional 16-megapixel stills you’ve come to expect from OM-D, the E-M5 Mark II captures 40-megapixel images *2 using an innovative pixel-shift technique that is facilitated by the voice-coil motor IS unit. The 40-Megapixel High-Res Shot mode captures eight sequential images, moving the sensor by 0.5-pixel steps between each shot. Then, the E-M5 Mark II compiles those images to produce a super-high resolution shot that rivals those captured with a 40-megapixel full-frame camera.

A tripod and a high-resolution M.ZUIKO® DIGITAL PRO or M.ZUIKO Premium lens are recommended to use the 40-Megapixel High-Res Shot mode, which captures eight shots over a period of one second1. Another two seconds are required to compile the final image. Images can be captured at up to f/8 with a shutter speed of up to eight seconds and a sensitivity of up to ISO 1600. When shooting in RAW+JPEG mode, the camera will save a 40M JPEG file, a 64M RAW (ORF) file and a 16M RAW (ORI) file. 64M RAW images may be processed using Photoshop CS4 and later with a required plug-in.

OM-D Movie

The OM-D E-M5 Mark II’s advanced video features enable photographers to capture cinema-quality movies from the palm of their hand. The camera’s 5-axis image stabilization compensates for even the slightest movement, allowing the camera to capture stable footage without the use of a sophisticated and expensive stabilization rig, or even a tripod, letting users shoot in environments where adding heavy equipment may not be practical.  The mechanical IS unit can also work in concert with Electronic Stabilization if desired.

The OM-D E-M5 Mark II captures 1080p video at up to a 60p frame rate with up to 77 Mbps high bit-rate recording possible at the 30p setting. Additionally, the OM-D E-M5 Mark II supports 50p, 30p (29.97p), 25p and 24p (23.98p) frame rates, making it easy to blend footage captured using other camera systems. An integrated microphone jack supports external audio input, while a headphone jack positioned in the HLD-8G External Grip enables real-time audio monitoring. Focus Peaking with four color choices (red, yellow, black and white) as well as three selectable intensities for optimal manual focus results. Settings can be adjusted while recording using the 3-inch touchscreen, including AF-point selection, exposure, electronic zoom and Movie Tele-converter, microphone sensitivity, headphone volume and art effects. Additionally, OM-D Movie supports time code settings and connection to an external HDMI® monitor during recording. You can also add an Olympus PCM recorder for high-quality audio capture.

Photographers can take advantage of the OM-D’s popular Art Filters while in Movie Capture mode. Users can select from Pop Art, Soft Focus, Pale and Light Color, Light Tone, Grainy Film, Pin Hole, Diorama, Cross Process, Gentle Sepia, Dramatic Tone, Key Line and Watercolor while capturing video. A Movie Tele-converter lets users touch an area on the screen to enlarge it without losing image quality, while the Clips tool enables short clip capture, allowing users to combine footage and effects directly on the camera for instant sharing.

Ultimate Connectivity

The OM-D E-M5 Mark II includes integrated Wi-Fi, enabling remote shooting, geotagging and easy image sharing using the Olympus Image Share app on an Android® or iOS® smartphone or tablet. Photographers can use the Olympus Image Share app to apply Art Filters. Users can also start and stop movie recording using a wirelessly connected smartphone, or with the RM-UC1 Remote Cable Release. Studio photographers can take advantage of Olympus Capture support, enabling complete control of the OM-D E-M5 Mark II from a connected Mac® or PC.

Portability and Build

The OM-D E-M5 Mark II features a dustproof, splashproof body, that, when properly sealed and paired with select M.ZUIKO DIGITAL lenses, can even be used in the rain. Olympus’ renowned Supersonic Wave Filter technology uses super high speed frequency movement to “shake” any dust or debris off the sensor, eliminating dust marks that irreparably spoil images. Two body colors are available: a luxurious black with texture casting, and a bright, gorgeous silver. The camera includes machined metal dials, an extended grip and a lowered center of gravity that makes the OM-D E-M5 Mark II comfortable to hold in a variety of positions. The camera (body only) weighs just 417 grams, or 14.7 ounces, making it one of the lightest models in its class.

Accessories

The OM-D E-M5 Mark II includes a dustproof and splashproof bundled flash, the FL-LM3, with Guide Number 9 (at ISO 100) and tilt and swivel positioning, enabling users to light subjects directly or by bouncing the flash off of a ceiling or wall.

The HLD-8 is a dustproof and splashproof power battery holder for exclusive use with the OM-D E-M5 Mark II, which enhances both the camera grip and power supply. The HLD-8G Non-powered Grip pairs a substantial camera grip with a headphone jack for monitoring audio during video capture, and an HLD-6P Power Grip, which can attach directly to the camera or to the HLD-8G, provides additional battery power for extended shoots. Because the grip (HLD-8G) and battery holder (HLD-6P) can be separated, the grip can be used alone when necessary. The HLD-6P battery holder is the same as the HLD-6 which was previously designed for the OM-D E-M5. The ECG-2 Metal External Grip can be attached to and removed from a tripod easily, and includes a battery pass-through for changing batteries without removing the grip.

An EE-1 External Dot Sight, which is compatible with any camera with a hot shoe, makes it easier to frame subjects during super-telephoto shooting An EP-16 Large Eyecup is also available, which blocks sunlight, making the electronic viewfinder easier to use. A redesigned version of the OM-D E-M5’s popular full-cover case, which includes a body cover and removable front cover, is also available as the CS-46 FBC Leather Cover and Body Jacket. The PT-EP13 Dedicated Underwater Case can be used at depths of up to 45 meters, and is designed specifically for the OM-D E-M5 Mark II. The case is equipped with a pick-up viewfinder and can be used with the cameras bundled FL-LM3 flash, along with a variety of lenses.

U.S. Pricing and Availability

The Olympus OM-D E-M5 Mark II will be available in February 2015 in the following configurations:

Estimated Street Price

$1,099.99 Body only in Black or Silver

Accessory Pricing

  • HLD-8G Non-powered Grip (pricing & availability to be announced)
  • HLD-6P Power Grip (pricing & availability to be announced)
  • HLD-8 Combination HLD-8G + HLD-6P Grip (pricing & availability to be announced)
  • ECG-2 Metal External Grip (pricing & availability to be announced)
  • $139.99 CS-46 FBC Leather Cover and Body Jacket (Available in March, 2015)
  • $129.99 EE-1 External Dot Sight (Available in May, 2015)
  • $22.99 EP-16 Large Eyecup (Available in March, 2015)
  • $999.99 PT-EP13 Dedicated Underwater Case (Available in February, 2015)

To find out more about the OM-D E-M5 Mark II, and for a complete list of specifications, visit the Olympus website at http://www.getolympus.com/us/en/digitalcameras/omd/e-m5-mark-II.html.

*1 Approximately 5 steps brighter than OM-D E-M5 LV Boost
*2 40-megapixel results are optimal with still life and landscapes with no movement.
