Canon Patent for EF-M 18-40mm f/3.5-5.6 Pancake Lens

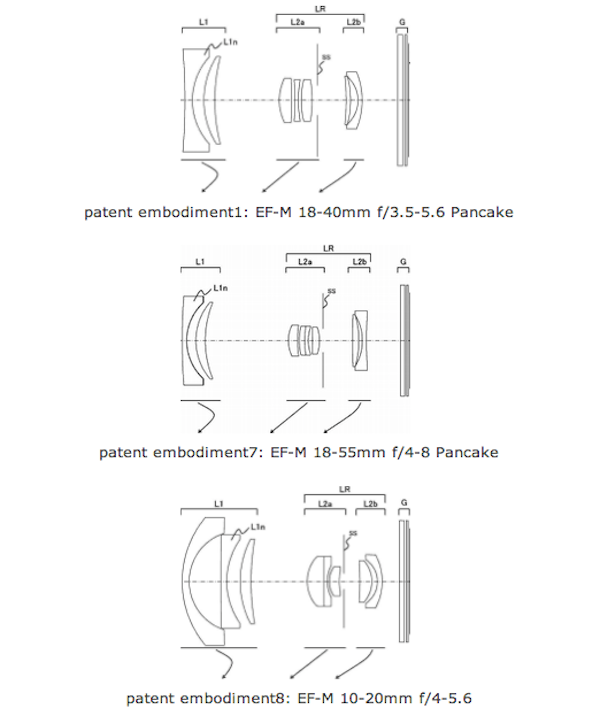

Egami discovered a new patent filed by Canon. The new patent describes the EF-M 18-40mm  f/3.5-5.6  pancake lens. The new Canon patent includes a bunch of other optical formulas such as an 18-55mm f/4-8 , 10-20 mm f/4-5.6 , 9-18mm f/4-5.6.

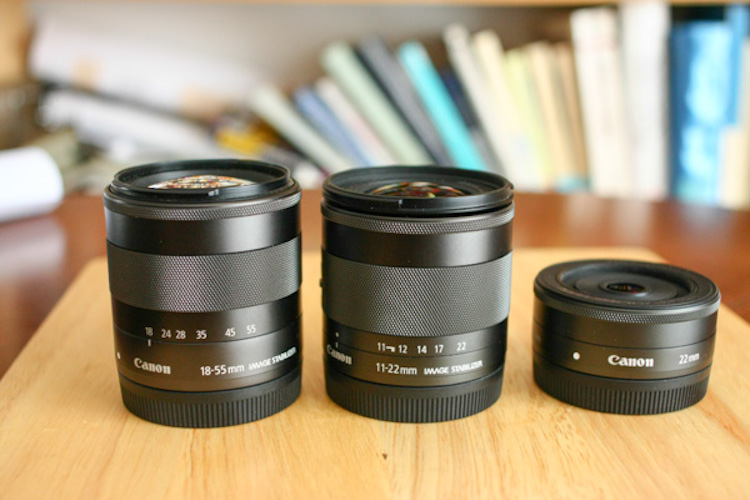

Canon currently has EF-M 11-22mm mirrorless lens. If these patents become available this year, the EOS M line would benefit a zoom pancake lens as described above.

Canon Patent for EF-M 18-40mm f/3.5-5.6 Pancake Lens


  • Patent Publication No. 2014-6275
    • Publication date 2014.1.16
    • Filing date 2012.6.21
  • Example 7
    • Zoom ratio 3.00
    • Focal length f = 18.10-37.01-54.30mm
    • Fno. 4.20-6.20-8.20
    • Half angle ω = 36.92-20.17-14.06 °
    • Image height Y = 13.60mm
    • 64.74-56.63-62.13mm lens length
    • BF 0.50mm
  • Canon patents
    • The possible vibration damping by the second lens group
    • Feeding whole, front focus, focusing, rear focusing, etc.

via EG
