Nikon 1 AW1 Underwater Mirrorless Camera Announced, Price, Specs

Nikon has announced Nikon 1 AW1 mirrorless interchangeable lens camera. The Nikon 1 AW1 is the world’s first rugged, waterproof, dust and shockproof compact system mirrorless camera with a 14.2-megapixel CX-format CMOS sensor.

The Nikon 1 AW1 features similar underlying specifications to the J3, featuring a 14MP sensor capable of shooting at up to 15 frames per second with continuous AF (60 fps with focus fixed), but is waterproof to a depth of 15m (49ft) and shockproof from a height of 2m (6.6 ft).

Nikon 1 AW1 features rubber seals at all critical points on the camera as well as an O-ring for the lens mount. The advanced hybrid AF system boasts fast phase-detection AF for high-speed movement, and contrast-detect AF for precision focusing.  Nikon 1 AW1 has also made AW versions of its 11-27.5mm f/3.5-5.6 and 10mm f/2.8 lenses that are both shock and waterproof.

Nikon 1 AW1 Underwater Mirrorless Camera Price

Nikon 1 AW1 waterproof mirrorless interchangeable lens camera kit with 11-27.5mm f/3.5-5.6 lens price is $799.00. Nikon 1 AW1 kit with 11-27.5mm f/3.5-5.6 and 10mm f/2.8 lenses price for $996.95

The new Nikon 1 AW1 underwater camera is available to pre-order from the camera stores. The Nikon 1 AW1 starts shipping from October 10, 2013. Where to buy Nikon 1 AW1 waterproof mirrorless camera.

Nikon 1 AW1 Underwater Mirrorless Camera Specs

Body type
Body type Rangefinder-style mirrorless
Max resolution 4608 x 3072
Image ratio w:h 3:2, 16:9
Effective pixels 14 megapixels
Sensor photo detectors 15 megapixels
Sensor size 1″ (13.2 x 8.8 mm)
Sensor type CMOS
Processor EXPEED 3A
Color space sRGB
ISO 160-6400
White balance presets 7
Custom white balance Yes (1)
Image stabilization No
Uncompressed format RAW
JPEG quality levels Fine, normal, basic
File format
  • JPEG
  • Raw (NEF)
Optics & Focus
  • Contrast Detect (sensor)
  • Phase Detect
  • Multi-area
  • Selective single-point
  • Tracking
  • Single
  • Continuous
  • Face Detection
  • Live View
Autofocus assist lamp Yes
Digital zoom No
Manual focus Yes
Number of focus points 135
Lens mount Nikon 1 mount
Focal length multiplier 2.7×
Screen / viewfinder
Articulated LCD No
Screen size 3.00″
Screen dots 921,000
Touch screen No
Screen type TFT LCD
Live view Yes
Viewfinder type None
Photography features
Minimum shutter speed 30 sec
Maximum shutter speed 1/16000 sec
Exposure modes
  • Program (P)
  • Shutter-priority (S)
  • Aperture priority (A)
  • Manual (M)
  • Scene Auto Selector
Scene modes
  • Portrait
  • Underwater
  • Night landscape
  • Landscape
  • Night portrait
  • Close-up
  • Auto
Built-in flash Yes (pop-up)
Flash range 5.00 m (at ISO 100)
External flash No
Flash modes Fill flash, fill w/slow sync, rear curtain sync, rear w/slow sync, redeye reduction, redeye w/slow sync, off
Flash X sync speed 1/60 sec
Drive modes
  • Single, continuous, self-timer
Self-timer Yes (2, 5, 10 secs)
Metering modes
  • Multi
  • Center-weighted
  • Spot
Exposure compensation ±3 (at 1/3 EV steps)
WB Bracketing No
Videography features
  • MPEG-4
  • H.264
Microphone Stereo
Speaker Mono
Resolutions 1920 x 1080 (60i, 30p), 1280 x 720 (60p, 30p), 640 x 240 (400 fps), 320 x 120 (1200 fps)
Storage types SD/SDHC/SDXC card
USB USB 2.0 (480 Mbit/sec)
HDMI Yes (mini-HDMI)
Wireless Optional
Wireless notes via WU-1b wireless adapter
Remote control Yes (Optional ML-L3)
Environmentally sealed Yes (waterproof to 15m, shockproof from 2m)
Battery Battery Pack
Battery description Lithium-Ion EN-EL20 rechargeable battery & charger
Battery Life (CIPA) 220
Weight (inc. batteries) 201 g (0.44 lb / 7.09 oz)
Dimensions 114 x 72 x 37 mm (4.47 x 2.81 x 1.46″)
Other features
Orientation sensor Yes
GPS BuiltIn
GPS notes includes compass and altimeter/depth meter

Nikon 1 AW1 Underwater Mirrorless Camera Features

The Nikon 1 AW1: The World’s First Waterproof and Shockproof Interchangeable Lens Camera

Whether the destination is to the beach, the slopes or a mountain pass, the Nikon 1 AW1 is a must-pack accessory for any adventure. Waterproof (down to 49 feet), shockproof (up to 6.6 feet) and freezeproof (down to 14° F), the AW1 can handle the toughest conditions while capturing fast action. Though built to be durable and robust, the camera retains a compact and lightweight body, making it easy to carry on any expedition, above or below sea level.

Additionally, the versatile Nikon 1 AW1 offers the unique feature set that adventurers of all levels can take full advantage of, whether tackling a black diamond slope or an unfamiliar trail. With built-in GPS technology, AW1 users can track their travels while identifying the exact longitude and latitude where an image or video was captured. The AW1 is also equipped with an altimeter, a depth gauge, an electronic compass and a virtual horizon indicator. What’s more, the cameras pop-up flash is waterproof as well, allowing the user to add light to a scene automatically or on command.

Capturing the Perfect Shot: The Performance and Speed of the Nikon 1 AW1

Featuring both a 14.2-megapixel CX-format CMOS sensor and Nikon’s EXPEED 3A image processing engine, the AW1 produces sharp, high-quality images and HD video with great detail and color, even in challenging lighting situations. The Nikon 1 AW1 also sports a wide ISO range (160 to 6400), allowing users to capture sharp photos in a variety of lighting, even while handheld.

Swift performance and rapid response are hallmarks of the Nikon 1 System, and in similar fashion the   the AW1 includes Nikon’s superfast and extremely responsive Advanced Hybrid Autofocus (AF) system that affords users the ability to capture incredibly fast moving action. To capture even the fastest moving subjects with clarity, the 73-point AF array can lock on to the action in approximately 80 milliseconds2. To help ensure that no moment is missed, the AW1 offers the world’s fastest continuous shooting frame rate (approx. 15 frames-per-second [fps] with AF)3 and continuous shooting at 60 fps when the focus is locked.

Ready for the Next Adventure: The Feature Set of the Nikon 1 AW1

The compact Nikon 1 AW1 strikes the perfect balance between creative and user-friendly features and controls. Similar to the Nikon COOLPIX AW110, the AW1 also includes Action Control, which allows users to control certain functions of the camera simply by swinging it in the air. This feature makes it easier to adjust the camera underwater or when wearing gloves.

When using the Nikon 1 AW1, the Creative Mode menu provides an easy way to utilize full manual exposure controls (P,S,A,M) as well as Selective Color, Miniature, Soft, Night Landscape, Backlighting and Night Portrait modes. Additionally, Easy Panorama provides a simple way to capture vast landscapes from a wide perspective of awe-inspiring landscapes.

The Nikon 1 AW1 incorporates Full HD 1080p video capabilities as well as Advanced Movie Mode. In Advanced Movie Mode, users can shoot Full HD video and high-resolution stills simultaneously. Additionally, Slow Motion Movies can capture all the action at either 400 fps or 1200 fps. The AW1 also features Enhanced Motion Snapshot Mode, which provides shooters with the option of capturing a quick passing moment with a short, slow-motion movie sequence in addition to a single defining still image.

When Best Moment Capture Mode is selected, camera users have access to Smart Photo Selector or Slow View modes. With Smart Photo Selector, the AW1 can capture up to 20 shots with a simple press of the shutter button, and the camera will select the best shot. Slow View is ideal for extreme action sports; once focus is achieved and the shutter button is pressed halfway down, users capture live action (approx. 1.33 seconds) while the subject is displayed in slow motion on the screen. A slowed-down view is then continuously looped over until the shutter is fully pressed, resulting in an amazing moment that would have been otherwise been missed.

Furthermore, the Nikon 1 AW1 features an intuitive Auto Mode to help users frame the perfect shot with ease. The AW1 also comes equipped with Live Image Control, giving the user access to real time adjustments of Active D-Lighting, Background Softening, Motion Control and Brightness Control, which are displayed on the AW1’s LCD screen prior to capture.

When it’s time for some aquatic action, the Nikon 1 AW1 offers several underwater controls. When in Underwater mode, users can choose from either three options (standard, scuba, close-up), which will automatically adjust the camera’s settings to deliver optimal results based on the type of activity that a user is participating in. Additionally, the Underwater White Balance setting makes adjusting white balance simple, while the Underwater Distortion Control corrects the effects of distortion caused by water.

Share the Adventure: Wirelessly Send Images from the Nikon 1 AW1

For those who want to share their images from their latest expeditions instantly, users will be able to take advantage of the AW1’s Wi-Fi capabilities. Similar to previous Nikon 1 System cameras like the Nikon 1 J3, the Nikon 1 AW1 is fully compatible with Nikon’s optional WU-1b Wireless Mobile Adapter4, allowing high-quality images to seamlessly be transferred to compatible smart devices wirelessly.  If using the free Wireless Mobile Adapter Utility application for Android™5 platform smart devices as well as iPhone® and iPad®6 mobile digital devices, AW1 users will have the ability to remotely take photos with the camera from a smartphone or tablet as well.

The 1 NIKKOR AW 11-27.5mm f/3.5-5.6 and AW 10mm f/2.8: New Lenses for the Nikon 1 AW1

Alongside the new Nikon 1 AW1, the waterproof, shockproof and freezeproof 1 NIKKOR AW 11-27.5mm f/3.5-5.6 and 1 NIKKOR AW 10mm f/2.8 provide two versatile lens options for the individual looking for a compact camera system that can keep up with their active lifestyle. When attached to the AW1, these lenses can handle tough conditions while being waterproof (up to 49 feet), shockproof (up to 6.6 feet) and freezeproof(down to 14° F). The compact 11-27.5mm is a lightweight yet durable lens that packs a 2.5x zoom (30-74mm equivalent) and is ideal for capturing landscapes and portraiture during a family’s latest expedition. Portable and ultra-compact, the 10mm provides AW1 shooters with a wide angle of view, useful when capturing everything from sweeping landscapes to close-up action that fills the frame. Not to be outdone, the 10mm has a fast aperture of f/2.8, to capture special moments with incredible clarity and a soft natural background, even in challenging light such as dusk or when underwater.

For further versatility when out of the water, the Nikon 1 AW1 is also fully compatible with the expanding lineup of incredibly sharp 1 NIKKOR lenses, Nikon 1 accessories, as well as a wide range F-Mount NIKKOR lenses when connected to the FT-1 Mount Adapter.

New Nikon 1 Accessories: New Skins Provide More Control and Personal Flair

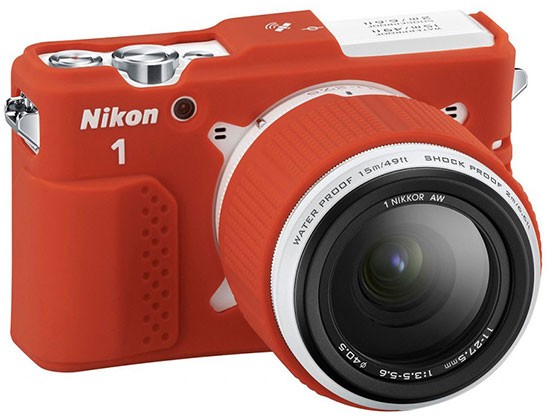

Demonstrating Nikon’s commitment to the newly introduced waterproof, shockproof and freezeproof products, Nikon also introduced new accessory skins for the Nikon 1 AW1 and the 1 NIKKOR AW 11-27.5mm f/3.5-5.6 lens. To provide more grip, comfort and control when shooting, the new accessory skins provide extra protection while also adding visibility and personal flair to their Nikon 1 Camera System setup.

For those adventurers looking for the flexibility to swap lenses in environments with extreme temperature and humidity changes, Nikon has developed a new filter attachment, the Filter AW 40.5 NC, to effectively combat the common occurrence of condensation. Nikon has also announced the development of the SB-N10 Underwater Speedlight. The SB-N10 will offer extra illumination when capturing still images underwater or in extreme low-light conditions.

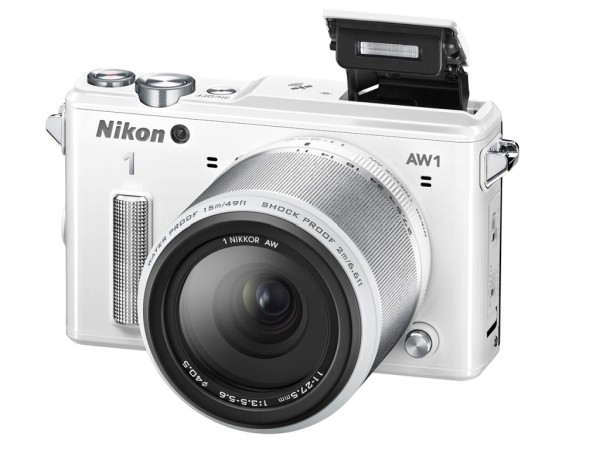

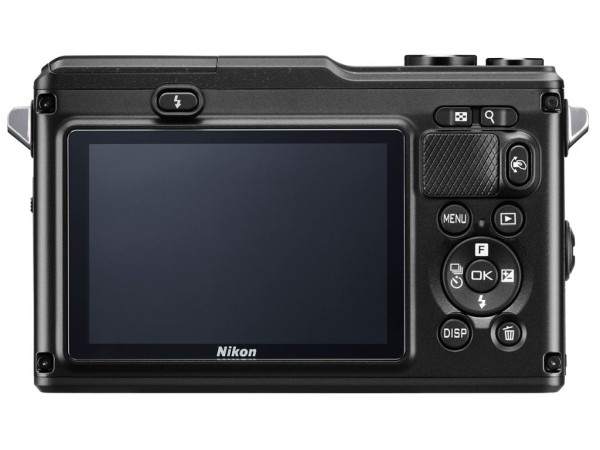

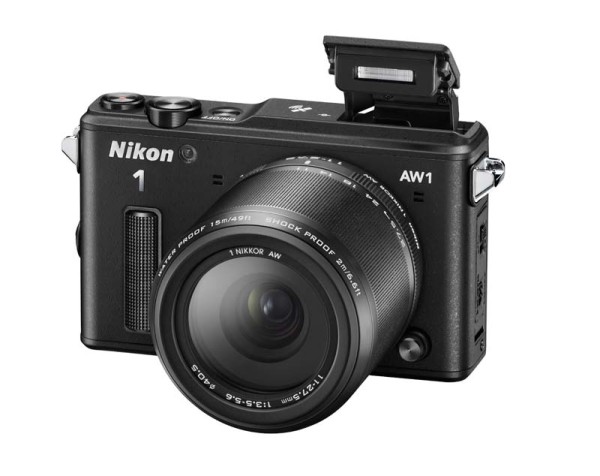

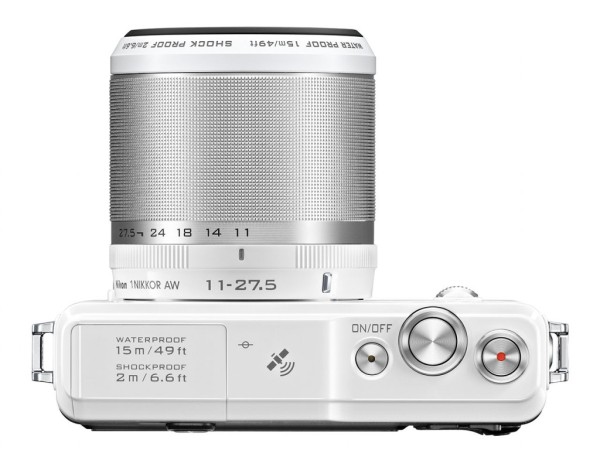

Nikon 1 AW1 Underwater Mirrorless Camera Product Images
