Canon EF-M 11-22mm f/4-5.6 IS STM Lens Announced Price, Specs

By on

Canon has announced the EF-M 11-22mm f/4-5.6 IS STM an image stabilized wide-angle zoom lens for the Canon EOS M mirrorless cameras.

The new Canon EF-M 11-22mm f/4-5.6 IS STM mirrorless lens is the Canon’s first wide zoom with IS, promising three stops of stabilization for stills and ‘Dynamic IS’ for video

A linear stepper motor offers silent autofocus during movie shooting, and a retractable barrel design makes the lens about the same size as the 18-55mm kit zoom when collapsed.

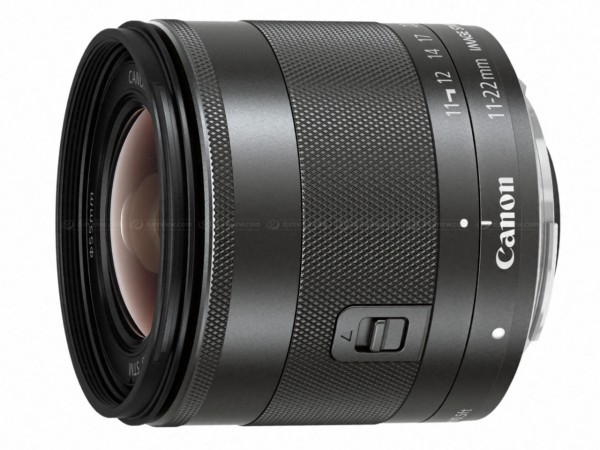

Canon-EF-M-11-22mm-f-4-5.6-IS-STM-lens

Canon EF-M 11-22mm f/4-5.6 IS STM Lens Price and Release Date

Canon’s new EF-M 11-22mm f/4-5.6 IS STM lens for EOS M mirrorless cameras priced at £379.99 / €399 . The EF-M 11-22mm f/4-5.6 IS STM starts shipping in late June, 2013.

Canon EF-M 11-22mm f/4-5.6 IS STM Lens Specs

Below you can find the technical specs of the new Canon EF-M 11-22mm f/4-5.6 IS STM mirrorless lens.

Recommended retail price  • £379.99
• €399
 Maximum format size  APS-C
 Focal length  11-22mm
 35mm equivalent focal length (APS-C)  18-35mm
 Diagonal angle of view  102.1° – 63.3°
 Maximum aperture  F4-5.6
 Minimum aperture  F22-35
 Lens Construction  • 12 elements in 9 groups
 Number of diaphragm blades  7
 Minimum focus  0.15m / 0.49ft
 Maximum magnification  0.30x
 AF motor type  • Linear stepper motor
• Full time manual focus
 Focus method  Internal
 Zoom method  Rotary, extending barrel
 Image stabilization  • Yes
• 3 stops
 Filter thread  • 55mm
• Does not rotate on focus
 Supplied accessories*  • Front and rear caps
 Optional accessories  • Lens hood EW-60E
• Lens pouch LP814
 Weight  220g (7.8 oz)
 Dimensions  61mm diameter x 58mm length
(2.4 x 2.3 in)
 Lens Mount  Canon EF-M

Canon EF-M 11-22mm f/4-5.6 IS STM Lens Features

Below are the main features and details for the new Canon EF-M 11-22mm f/4-5.6 IS STM mirrorless lens.

  • Ultra-wide 11-22mm EF-M zoom lens
  • Compact, retractable lens design
  • Smooth, quiet STM focusing in movies
  • Dynamic IS for steady movies
  • 3-stop optical Image Stabilizer
  • High image quality
  • 0.15m minimum focusing distance
  • Manual focus ring

Shoot the city, shoot the world

Designed to expand the range of creative possibilities and shooting subjects, the EF-M 11-22mm f/4-5.6 IS STM has an 11-22mm focal range which provides an incredibly wide field of view. This allows users to capture the environment around them whilst remaining close to the subject – ideal for adding drama and atmosphere to each shot.

Class-leading optics deliver incredible results

Engineered using the latest optical technologies, the EF-M 11-22mm f/4-5.6 IS STM enables users to capture images with incredible levels of detail and quality. Manufactured using Canon’s professional quality standards, the lens uses Super Spectra Coatings designed to minimise ghosting and flare, providing beautiful results with every shot. Images are crisp and clear thanks to Canon’s Optical Image Stabilizer, which works to keep image blur to a minimum by correcting camera shake. A 3-stop shutter speed advantage ensures high quality stills, even when light levels start to fade. Shooting smooth Full HD movies is easy using the advanced Dynamic IS mode which combats more exaggerated forms of camera shake that occur when shooting video on the move. Canon’s near-silent STM technology also ensures focus noise is supressed during movie capture, so the audience can enjoy crystal clear sound to match the visual quality of the footage captured.

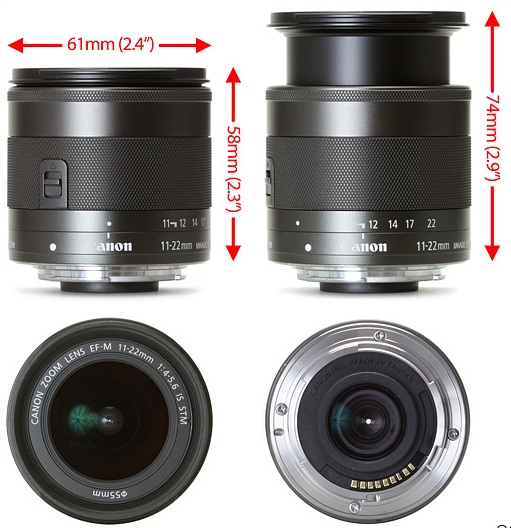

EF-M 11-22mm f/4-5.6 IS STM image

Designed for performance and style

Incredibly compact and lightweight, the EF-M 11-22mm f/4-5.6 IS STM has been designed to fit easily into the smallest of spaces so it can be carried everywhere. A new retractable lens design – a first for the EF lens range – locked in place by a switch, allows users to retract the lens back into the barrel when not in use. This keeps the body slim and compact, reducing the lens length by 13mm. An integrated full time manual focus ring also provides the freedom to make precise adjustments to focus as needed. Designed to complement the EOS M’s chic styling, the EF-M 11-22mm f/4-5.6 IS STM features a graphite silver, metal exterior, while the knurled focus and zoom rings are comfortable in the hand and provide easy operation.

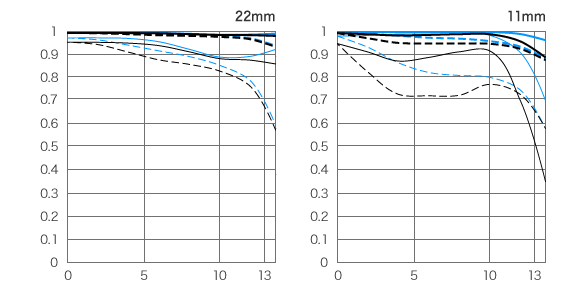

Mft Chart
EF-M 11-22mm f/4-5.6 IS STM mft
